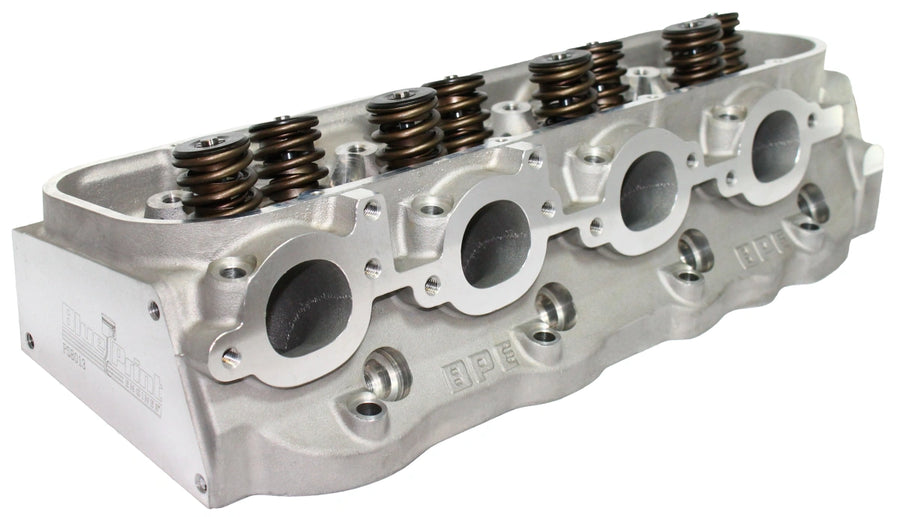

BB Chevy Aluminum Cylinder Head - 316cc - Assembled
Part# PS8013
BB Chevy Aluminum Cylinder Head - 316cc - Assembled
- Made in USA
$1,299.00
Free Shipping
Buy with confidence. Warranty terms are noted on your invoice,
delivery is included in the lower 48 states, and our specialists are a phone call away
through installation and beyond.
BB Chevy Aluminum Cylinder Head 316cc Assembled
Specifications
| Manufacturer's Part Number | PS8013 |
|---|---|
| Combustion Chamber Volume (cc) | 119c |
| Intake Runner Volume (cc) | 316cc |
| Exhaust Runner Volume (cc) | 124cc |
| Cylinder Head Style | Assembled |
| Cylinder Head Material | Aluminum |
| Intake Port Shape | Rectangular |
| Intake Valve Diameter (in.) | 2.3 in. |
| CNC-Machined Combustion Chamber | No |
| CNC-Machined Intake Runner | No |
| Intake Port Location | Standard |
| Exhaust Port Shape | Round |
| Exhaust Port Location | Raised approx. .300" vs OEM |
| Spark Plug Style | Straight |
| Intake Valves Included | Yes |
| Exhaust Valves Included | Yes |
| Exhaust Valve Diameter (in.) | 1.800 in. |
| Valve Springs Included | Yes |
| Maximum Valve Lift (in.) | 0.7 in. |
| Camshaft Style | Hydraulic Roller |
| Outside Diameter of Outer Spring (in.) | 1.540 in. |
| Damper Spring Included | Yes |
| Number of Springs Per Valve | Dual |
| Retainers Included | Yes |
| Retainer Material | Chromoly Steel |
| Locks Included | Yes |
| Lock Style | 10 Degree |
| Valve Stem Seals Included | Yes |
| Valve Stem Seal Style | Viton® Fluoroelastomer |
| Rocker Arm Studs Included | Yes |
| Rocker Arm Nut Thread Size | 7/16 x 20 |
| Rocker Arms Included | No |
| Rocker Arm Nuts Included | No |
| Guide plates Included | Yes |
| Guide plate Pushrod Size | 3/8 in. |
| Valve Cover Mounting Style | Perimeter Bolt |
| Accessory Bolt Holes Drilled | No |
| Intake Valve Angle | 24 |
| Exhaust Valve Angle | 15 |
| Valve Guides Included | Yes |
| Valve Guide Material | Manganese Bronze |
| Valve Seats Machined | Yes |
| Valve Seat Machine Style | 5-Angle |
| Valve Seat Material | Chrome Nickel |
| Cylinder Head Color | Natural |
| Steam Holes Drilled | No |
| Oiling Style | Through Pushrod |
| Machined for O-Ring | No |
| Heat Crossover | No |
| Country of origin | USA |
| Shipping weight | 42 lb |
| Shipping size | 25 x 11 x 8 in |
