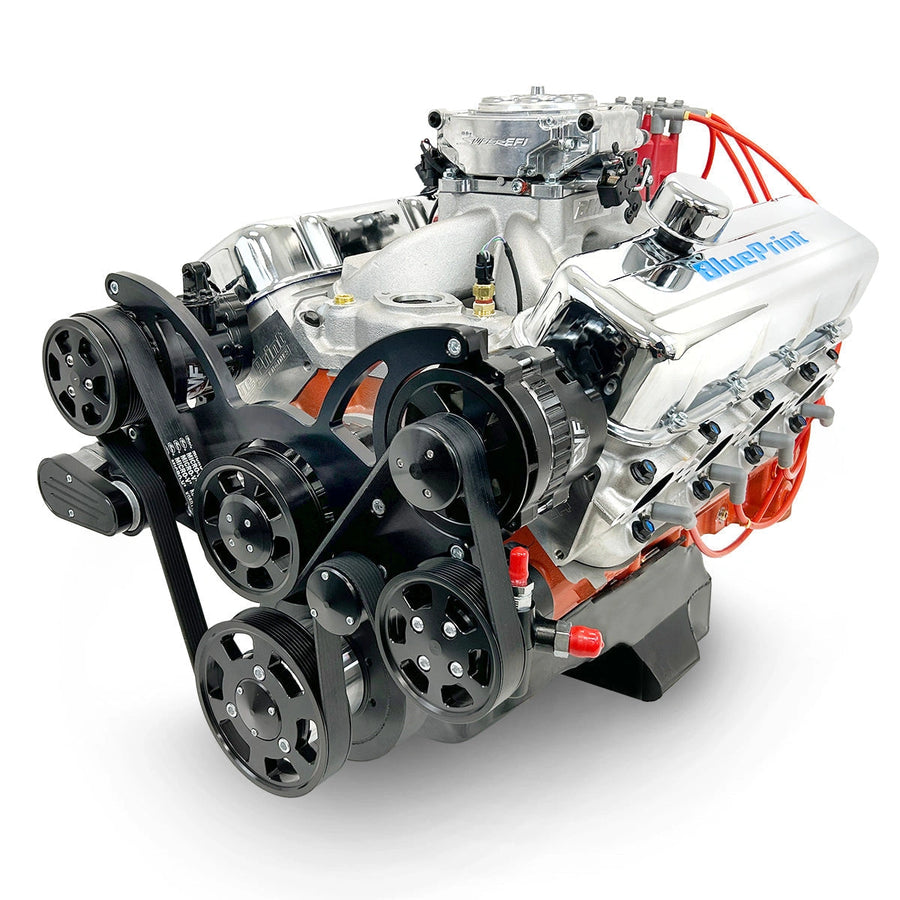

BluePrint Engines GM Big Block Compatible Pro Series 502 C.I. Deluxe Dressed - Black Pulley Kit - Fuel Injected

BluePrint Engines GM Big Block Compatible Pro Series 502 C.I. Deluxe Dressed - Black Pulley Kit - Fuel Injected

Part# PS502CTFKB

  • Made in USA
  • GM Compatible
  • Fuel Injected

$16,199.00

Free Shipping

Call 888-823-7800
Buy with confidence. Warranty terms are noted on your invoice, delivery is included in the lower 48 states, and our specialists are a phone call away through installation and beyond.

BluePrint Engines 502 c.i. GM Big Block Compatible - Deluxe Dressed - Fuel Injected - Black Pulley Kit. Includes 30-Month / 50 000 Mile Warranty & Dyno Tested

Specifications

Horsepower627
Torque569
Compression Ratio10.0:1
Block DescriptionBluePrint Engines Cast Iron Block - 4 Bolt Main - Standard Deck - 4.466 " Bore
Rear Main Seal Style1 Piece
Rotating AssemblyForged Crank - 4.050 in. Stroke and 6.385 in. Rods
CamHydraulic Roller - .647 Intake / .647 Exhaust Lift - 248 Intake / 254 Exhaust Duration - @.050-112 LSA
Crankshaft VendorBluePrint Engines
PistonsForged
Engine BalanceInternally Balanced
Cylinder Heads IncludedYes
Cylinder HeadsAluminum Cylinder Heads
Cylinder Head VendorBluePrint Engines
Flexplate/Flywheel IncludedNo
Recommended Flexplate/FlywheelBPP168T2P - BPP460130
Harmonic Balancer IncludedYes
Recommended Harmonic BalancerBPP454I
Timing RequirementsInitial Timing 10-16 - Total Timing 32-34
Timing Cover IncludedYes
Oil Pan IncludedYes-Rear Sump
Valve Covers IncludedYes
Intake Manifold IncludedYes
Intake Manifold TypeSingle Plane, Satin Aluminum
Intake Manifold VendorEdelbrock
Fuel Delivery TypeSniper II EFI - Fuel Injected
Fuel Delivery VendorHolley
Carb/Fuel Injection IncludedYes
Recommended Octane Fuel91+ Octane
Distributor IncludedYes
Distributor VendorBluePrint Pro Billet
Spark Plugs IncludedYes
Recommended Spark Plug Gap.035 in.
Recommended Spark PlugBPP7938 - NGK 7938 BKR5E
Spark Plug Wires IncludedYes
Firing Order1,8,4,3,6,5,7,2
Water Pump IncludedYes
Air Cleaner IncludedNo
Recommended Stall Converter2200+ RPM
Pulley Kit IncludedYes - Black - Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140amp 1-wire Alternator, 7B10 Peanut Style Air Conditioning Compressor.
Country of originUSA
Shipping weight760 lb
Shipping size34 x 35 x 44 in

Vehicles this fits

Listed by BluePrint Engines for 99 vehicle models. Call us to confirm before you order.

Show all 99 vehicles
  • Chevrolet Bel Air 1965–1975
  • Chevrolet Biscayne 1965–1972
  • Chevrolet Blazer 1973–1974
  • Chevrolet Brookwood 1969–1972
  • Chevrolet C10 1975–1980
  • Chevrolet C10 Pickup 1968–1969, 1973–1974
  • Chevrolet C10 Suburban 1968–1969, 1973–1980
  • Chevrolet C20 1975–1986
  • Chevrolet C20 Pickup 1968–1969, 1973–1974
  • Chevrolet C20 Suburban 1968–1969, 1973–1986
  • Chevrolet C30 1975–1986
  • Chevrolet C30 Pickup 1968–1969, 1973–1974
  • Chevrolet C70 1979–1980
  • Chevrolet Camaro 1967–1969
  • Chevrolet Caprice 1966–1976
  • Chevrolet Chevelle 1965–1973
  • Chevrolet Chevy II 1968
  • Chevrolet Corvette 1965, 1970–1974
  • Chevrolet El Camino 1966–1975
  • Chevrolet Estate 1969–1970
  • Chevrolet G10 Van 1973–1974
  • Chevrolet G20 1976
  • Chevrolet G20 Van 1973–1974
  • Chevrolet G30 1975–1976
  • Chevrolet G30 Van 1973–1974
  • Chevrolet Impala 1965–1976
  • Chevrolet K10 1976, 1980
  • Chevrolet K10 Pickup 1968–1969, 1973–1974
  • Chevrolet K10 Suburban 1968–1969, 1973–1974
  • Chevrolet K20 1976–1978
  • Chevrolet K20 Pickup 1968–1969, 1973–1974
  • Chevrolet K20 Suburban 1968–1969, 1973–1974, 1985
  • Chevrolet K30 1977, 1980–1986
  • Chevrolet K30 Pickup 1968–1969, 1973–1974
  • Chevrolet K5 Blazer 1976–1978
  • Chevrolet Kingswood 1969–1972
  • Chevrolet Monte Carlo 1970–1975
  • Chevrolet Nova 1969–1971
  • Chevrolet P10 Van 1973
  • Chevrolet P20 1976, 1979
  • Chevrolet P20 Van 1970–1971, 1973
  • Chevrolet P30 1975–1987
  • Chevrolet P30 Van 1970–1971, 1973–1974
  • Chevrolet R20 1987
  • Chevrolet R20 Suburban 1987
  • Chevrolet R30 1987
  • Chevrolet Townsman 1969–1972
  • Chevrolet V20 Suburban 1987
  • Chevrolet V30 1987
  • Chevrolet W5500 Tiltmaster 1988–1994
  • Chevrolet W6500 Tiltmaster 1988–1989, 1992–1994
  • Chevrolet W7500 Tiltmaster 1989–1994
  • GMC C15 1975–1978
  • GMC C15 Suburban 1975–1978
  • GMC C15/C1500 Pickup 1968–1969, 1973–1974
  • GMC C15/C1500 Suburban 1968–1969, 1973–1974
  • GMC C1500 1979–1980
  • GMC C1500 Suburban 1979–1980
  • GMC C25 1975–1978
  • GMC C25 Suburban 1975–1978
  • GMC C25/C2500 Pickup 1968–1969, 1973–1974
  • GMC C25/C2500 Suburban 1968–1969, 1973–1974
  • GMC C2500 1979–1986
  • GMC C2500 Suburban 1979–1986
  • GMC C35 1975–1978
  • GMC C35/C3500 Pickup 1968–1969, 1973–1974
  • GMC C3500 1979–1986
  • GMC C7000 1979–1980
  • GMC G25 1975–1976
  • GMC G35 1976
  • GMC G35/G3500 Van 1973–1974
  • GMC Jimmy 1973–1974, 1976
  • GMC K15 1976
  • GMC K15/K1500 Pickup 1968–1969, 1973–1974
  • GMC K15/K1500 Suburban 1968–1969, 1973–1974
  • GMC K1500 1980
  • GMC K25 1976–1978
  • GMC K25 Suburban 1976–1977
  • GMC K25/K2500 Pickup 1968–1969, 1973–1974
  • GMC K25/K2500 Suburban 1968–1969, 1973–1974
  • GMC K35/K3500 Pickup 1968–1969, 1973–1974
  • GMC K3500 1979–1986
  • GMC P1500 1979
  • GMC P25/P2500 Van 1970–1971
  • GMC P35 1975–1978
  • GMC P35/P3500 Van 1970–1971, 1973–1974
  • GMC P3500 1979–1987
  • GMC R2500 1987
  • GMC R2500 Suburban 1987
  • GMC R3500 1987
  • GMC Sprint 1971–1975
  • GMC V3500 1987
  • GMC W5500 Forward 1988–1994
  • GMC W6500 Forward 1988–1989, 1992–1994
  • GMC W7500 Forward 1989–1994
  • Pontiac Acadian 1970–1971
  • Pontiac Laurentian 1970
  • Pontiac Parisienne 1970
  • Pontiac Strato-Chief 1970
