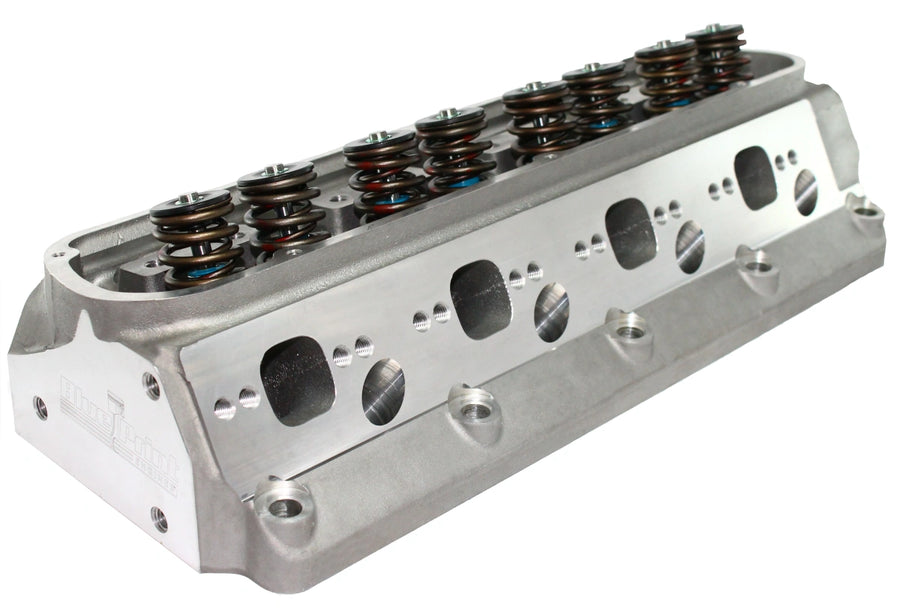

BluePrint Engines HP9009 SB Ford Aluminum Cylinder Head 190cc Stud Mount Assembled

BluePrint Engines HP9009 SB Ford Aluminum Cylinder Head 190cc Stud Mount Assembled

Part# HP9009

  • Made in USA

$849.00

Free Shipping

Call 888-823-7800
Buy with confidence. Warranty terms are noted on your invoice, delivery is included in the lower 48 states, and our specialists are a phone call away through installation and beyond.

SB Ford Aluminum Cylinder Head 190cc Stud Mount Assembled

Specifications

Manufacturer's Part NumberHP9009
Combustion Chamber Volume (cc)60cc
Intake Runner Volume (cc)190cc
Exhaust Runner Volume (cc)65cc
Cylinder Head StyleAssembled
Cylinder Head MaterialAluminum
Intake Port ShapeRectangular
Intake Valve Diameter (in.)2.020 in.
CNC-Machined Combustion ChamberNo
CNC-Machined Intake RunnerNo
Intake Port LocationStandard
Exhaust Port ShapeSquare
Exhaust Port LocationStandard
Spark Plug StyleAngle
Intake Valves IncludedYes
Exhaust Valves IncludedYes
Exhaust Valve Diameter (in.)1.600 in.
Valve Springs IncludedYes
Maximum Valve Lift (in.)0.575 in.
Camshaft StyleHydraulic Roller
Outside Diameter of Outer Spring (in.)1.437 in.
Damper Spring IncludedYes
Number of Springs Per ValveDual
Retainers IncludedYes
Retainer MaterialChromoly Steel
Locks IncludedYes
Lock Style7 Degree
Valve Stem Seals IncludedYes
Valve Stem Seal StyleViton® Fluoroelastomer
Rocker Arm Studs IncludedNo
Rocker Arms IncludedNo
Rocker Arm Nuts IncludedNo
Guide plates IncludedYes
Guide plate Pushrod Size5/16 in.
Valve Cover Mounting StylePerimeter Bolt
Accessory Bolt Holes DrilledYes
Intake Valve Angle20
Exhaust Valve Angle20
Valve Guides IncludedYes
Valve Guide MaterialManganese Bronze
Valve Seats MachinedYes
Valve Seat Machine Style5-Angle
Valve Seat MaterialChrome Nickel
Cylinder Head ColorNatural
Steam Holes DrilledNo
Oiling StyleThrough Pushrod
Machined for O-RingNo
Heat CrossoverNo
NotesUses Stud mount rocker arms.
Country of originUSA
Shipping weight29.4 lb
Shipping size22 x 10 x 8 in
