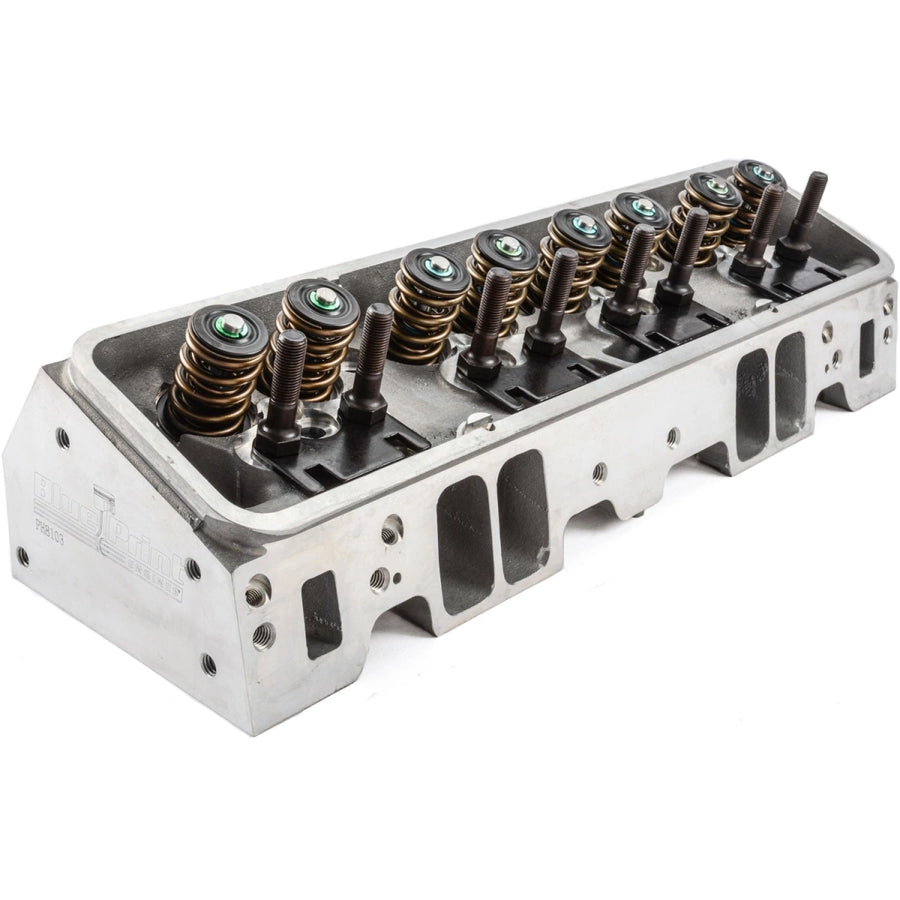

BluePrint Engines HP8103 SB Chevy Aluminum Cylinder Head 220cc Assembled
Part# HP8103
BluePrint Engines HP8103 SB Chevy Aluminum Cylinder Head 220cc Assembled
- Made in USA
$949.00
Free Shipping
Buy with confidence. Warranty terms are noted on your invoice,
delivery is included in the lower 48 states, and our specialists are a phone call away
through installation and beyond.
SB Chevy Aluminum Cylinder Head 220cc Assembled
Specifications
| Manufacturer's Part Number | HP8103 |
|---|---|
| Combustion Chamber Volume (cc) | 64cc |
| Intake Runner Volume (cc) | 220cc |
| Exhaust Runner Volume (cc) | 67cc |
| Cylinder Head Style | Assembled |
| Cylinder Head Material | Aluminum |
| Intake Port Shape | Rectangular |
| Intake Valve Diameter (in.) | 2.080 in |
| CNC-Machined Combustion Chamber | No |
| CNC-Machined Intake Runner | No |
| Intake Port Location | Standard |
| Exhaust Port Shape | Square |
| Exhaust Port Location | Raised .500 |
| Spark Plug Style | Straight |
| Intake Valves Included | Yes |
| Exhaust Valves Included | Yes |
| Exhaust Valve Diameter (in.) | 1.600 in. |
| Valve Springs Included | Yes |
| Maximum Valve Lift (in.) | .650 in. |
| Camshaft Style | Hydraulic Roller |
| Outside Diameter of Outer Spring (in.) | 1.295 in. |
| Damper Spring Included | Yes |
| Number of Springs Per Valve | Dual |
| Retainers Included | Yes |
| Retainer Material | Chromoly Steel |
| Locks Included | Yes |
| Lock Style | 7 Degree |
| Valve Stem Seals Included | Yes |
| Valve Stem Seal Style | Viton® Fluoroelastomer |
| Rocker Arm Studs Included | Yes |
| Rocker Arm Nut Thread Size | 7/16 x 20 |
| Rocker Arms Included | No |
| Rocker Arm Nuts Included | No |
| Guide plates Included | Yes |
| Guide plate Pushrod Size | 5/16 in. |
| Valve Cover Mounting Style | Center and Perimeter bolt |
| Accessory Bolt Holes Drilled | Yes |
| Intake Valve Angle | 23 |
| Exhaust Valve Angle | 23 |
| Valve Guides Included | Yes |
| Valve Guide Material | Manganese Bronze |
| Valve Seats Machined | Yes |
| Valve Seat Machine Style | 5-Angle |
| Valve Seat Material | Chrome Nickel |
| Cylinder Head Color | Natural |
| Steam Holes Drilled | No |
| Oiling Style | Through Pushrod |
| Machined for O-Ring | No |
| Heat Crossover | No |
| Notes | Will not fit 1986-1991 Chevrolet Corvette. Uses 3/4 in. reach gasket seat spark plug |
| Country of origin | USA |
| Shipping weight | 30 lb |
| Shipping size | 22 x 10 x 8 in |
