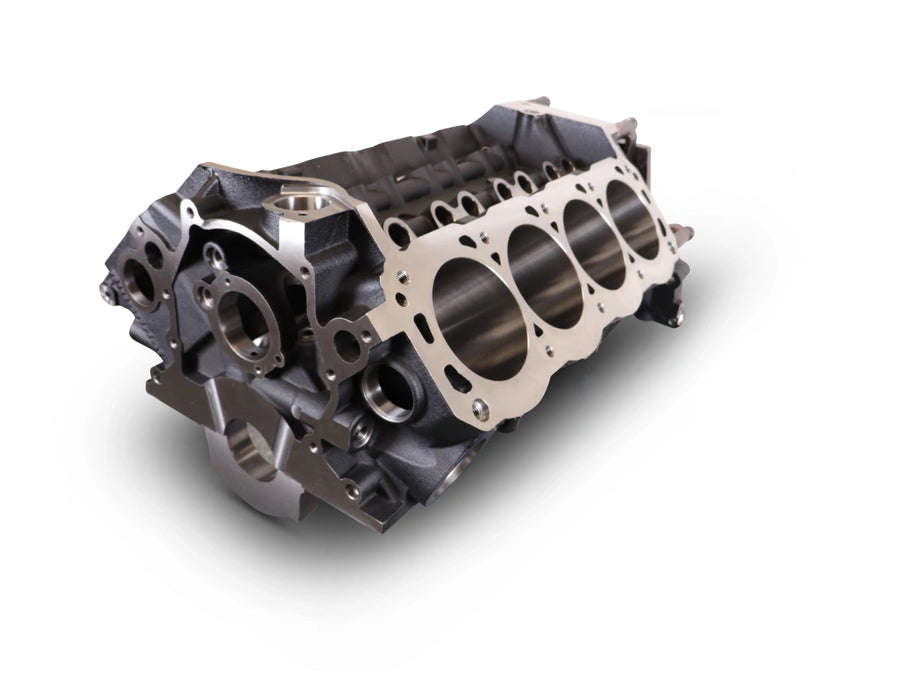

BluePrint Engines BPP12110341 Small Block Ford Compatible 302 Bare Block 8.200 Deck 4.125 Bore Ductile

BluePrint Engines BPP12110341 Small Block Ford Compatible 302 Bare Block 8.200 Deck 4.125 Bore Ductile

Part# BPP12110341

  • Made in USA
  • Ford Compatible

$2,599.00

Free Shipping

Call 888-823-7800
Buy with confidence. Warranty terms are noted on your invoice, delivery is included in the lower 48 states, and our specialists are a phone call away through installation and beyond.

BluePrint Engines Bare Block - 363 c.i. - SBF 302 SIAM 8.200 x 4.125 CAST MC

Specifications

Configuration302
Cylinder Bore (Rough)3.995" to 3.997"
Cylinder Bore (Max)4.165"
Cam Bearing Bore Id2.2046"+/- .0005"
Cam BearingsDurabond 351HP
Camshaft PositionOEM
Cam Drive / Timing SetOEM equivalent
Cam Retaining PlateOEM
Cubic Inch (Max)363
Cylinder Wall Thickness.160" nominal @ 4.165" bore
Water Jacket StyleSiamese
Cylinder Skirt Length5.090" Nominal
Deck Height8.200" +.005" / -.000"
Deck Thickness.600" Nominal
Freeze / Core Plugs1-5/8" x 10 BPE # 10110016
Head Bolt Threads7/16-14 x 1.35 Deep
Lifter Bores.8757" +/- .0005"
Lifter Retainer (If Not Using Tie Bar Lifters)OEM W/Roller Provisions
Main Bearing Bore (Line Honed)2.4420"-2.4412"
Main Bearing CapsDuctile Cast Iron 4-Bolt Splayed
Main Cap Bolts7/16-14 Inner / 3/8-16 splayed
Main Fastener Tensile Strength180,000 to 210,000 PSI
Material (Block)EN-GJL-250 Iron
Oil SystemPriority Main
Oil PumpOEM
Oil FilterOEM
Oil PanOEM
Fuel PumpOEM
StarterOEM
Stroke (Max)3.400"
Timing CoverOEM
Weight With Main Caps170-190lbs
Country of originUSA
Shipping weight190 lb
Shipping size26 x 23.5 x 22.5 in
