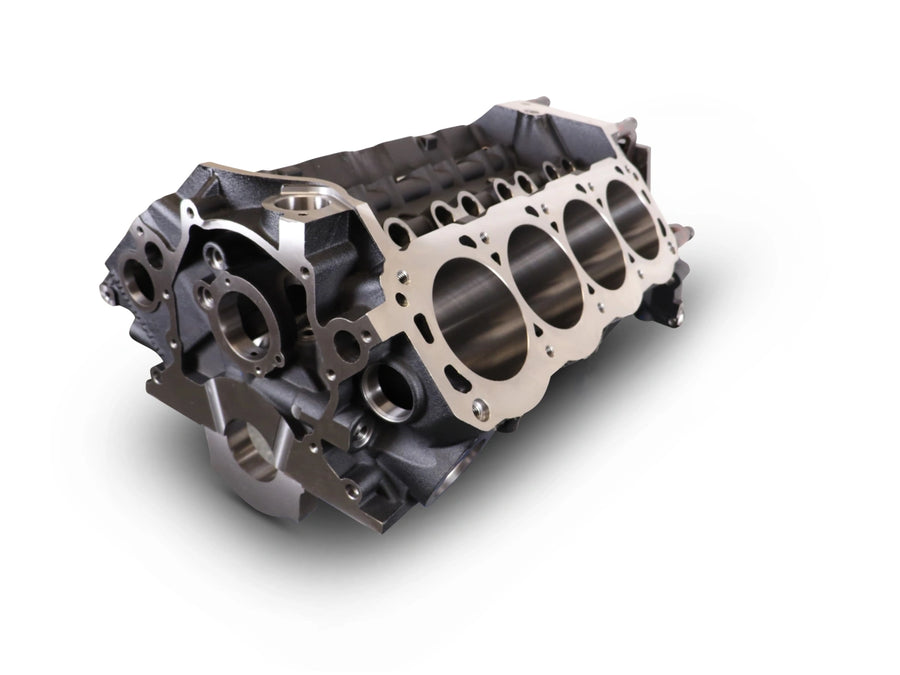

BluePrint Engines BPP12110335 Small Block Ford Compatible 351 Bare Block 9.500 Deck 4.125 Bore Steel

BluePrint Engines BPP12110335 Small Block Ford Compatible 351 Bare Block 9.500 Deck 4.125 Bore Steel

Part# BPP12110335

  • Made in USA
  • Ford Compatible

$4,399.99

Free Shipping

Call 888-823-7800
Buy with confidence. Warranty terms are noted on your invoice, delivery is included in the lower 48 states, and our specialists are a phone call away through installation and beyond.

BluePrint Engines Bare Block - 460 c.i. - SBF 351 SIAM CLEV 9.500 x 4.125 BILLET MC

Specifications

Configuration351
Cylinder Bore (Rough)4.120" to 4.122"
Cylinder Bore (Max)4.165"
Cam Bearing Bore Id2.2046"+/- .0005"
Cam BearingsDurabond 351HP
Camshaft PositionOEM
Cam Drive / Timing SetOEM equivalent
Cam Retaining PlateOEM
Cubic Inch (Max)460
Cylinder Wall Thickness.160" nominal @ 4.165" bore
Water Jacket StyleSiamese
Cylinder Skirt Length5.800" Nominal
Deck Height9.500" +.005" / -.000"
Deck Thickness.600" Nominal
Freeze / Core Plugs1-5/8" x 10 BPE # 10110016
Head Bolt Threads1/2-13 UNC x 1.35 deep
Lifter Bores.8757" +/- .0005"
Lifter Retainer (If Not Using Tie Bar Lifters)OEM W/Roller Provisions
Main Bearing Bore (Line Honed)2.9417"-2.9425" (Cleveland)
Main Bearing CapsBillet Steel 4-Bolt Splayed
Main Cap Bolts1/2-13 Inner / 3/8-16 splayed
Main Fastener Tensile Strength180,000 to 210,000 PSI
Material (Block)EN-GJL-250 Iron
Oil SystemPriority Main
Oil PumpOEM
Oil FilterOEM
Oil PanOEM
Fuel PumpOEM
StarterOEM
Stroke (Max)4.250"
Timing CoverOEM
Weight With Main Caps200 to 220lbs
Country of originUSA
Shipping weight220 lb
Shipping size26 x 23.5 x 22.5 in
