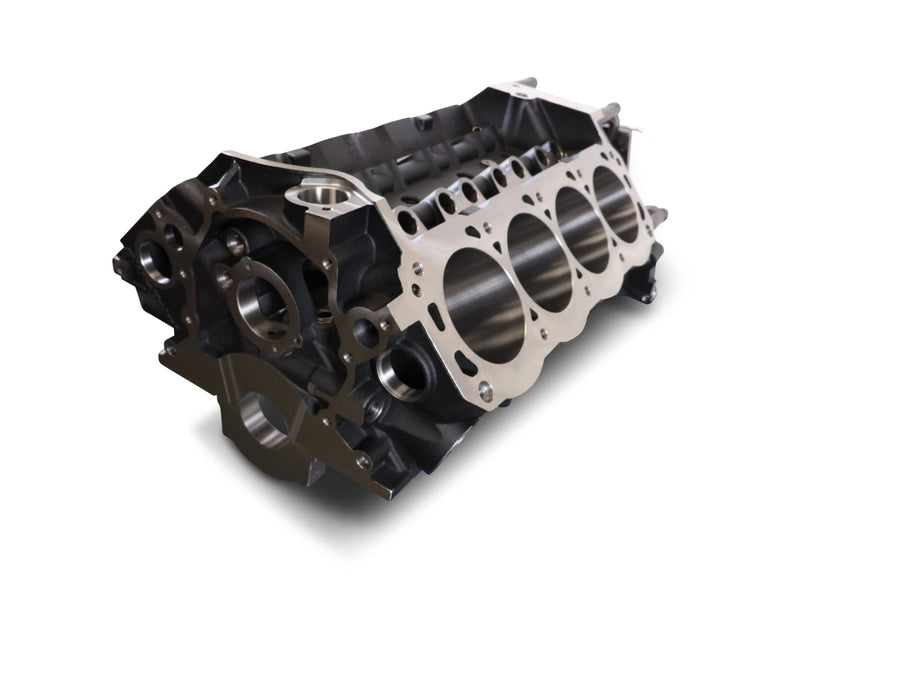

BluePrint Engines BPP12110331 GM Big Block Compatible Bare Block 10.200 Deck 4.600 Bore Steel Billet Main Caps
Part# BPP12110331
BluePrint Engines BPP12110331 GM Big Block Compatible Bare Block 10.200 Deck 4.600 Bore Steel Billet Main Caps
- Made in USA
- GM Compatible
$4,799.99
Free Shipping
Buy with confidence. Warranty terms are noted on your invoice,
delivery is included in the lower 48 states, and our specialists are a phone call away
through installation and beyond.
BluePrint Engines Bare Block - 632 c.i. - BBC 2PC SIAM 10.200 x 4.600 BILLET MC
Specifications
| Cylinder Bore (Rough) | 4.595" to 4.597" |
|---|---|
| Cylinder Bore (Max) | 4.630" |
| Cam Bearing Bore Id | 2.120"+/- .001" |
| Cam Bearings | Durabond GM-12 |
| Camshaft Position | OEM |
| Cam Drive / Timing Set | OEM /Double Roller |
| Cam Retaining Plate | OEM |
| Cubic Inch (Max) | 632 |
| Cylinder Wall Thickness | .310" Nominal @ Max Bore |
| Cylinder Skirt Length | 6.700" Nominal |
| Deck Height | 10.200" +.005" / -.000" |
| Deck Thickness | .710" Nominal |
| Freeze / Core Plugs | 1-5/8" x 8 |
| Head Bolt/Stud Threads | 7/16-14 UNC |
| Lifter Bores | .8437" +/- .0003" |
| Lifter Retainer (If Not Using Tie Bar Lifters) | OEM W/Roller Provisions |
| Main Bearing Bore (Line Honed) | 2.937" - 2.938" |
| Main Bearing Caps | Billet Steel |
| Main Cap Bolts | 1/2"-13 |
| Main Fastener Tensile Strength | 180,000 to 210,000 PSI |
| Material (Block) | EN-GJL-250 Iron |
| Oil System | Priority Main |
| Oil Pump | OEM |
| Oil Filter | OEM |
| Oil Pan | OEM (GEN IV) |
| Rear Main Seal | 2 piece Seal (OEM GEN IV) |
| Starter | OEM |
| Stroke (Max) | 4.750" |
| Timing Cover | OEM GEN IV |
| Weight With Main Caps | 250-270lbs |
| Country of origin | USA |
| Shipping weight | 270 lb |
| Shipping size | 26 x 23.5 x 22.5 in |
