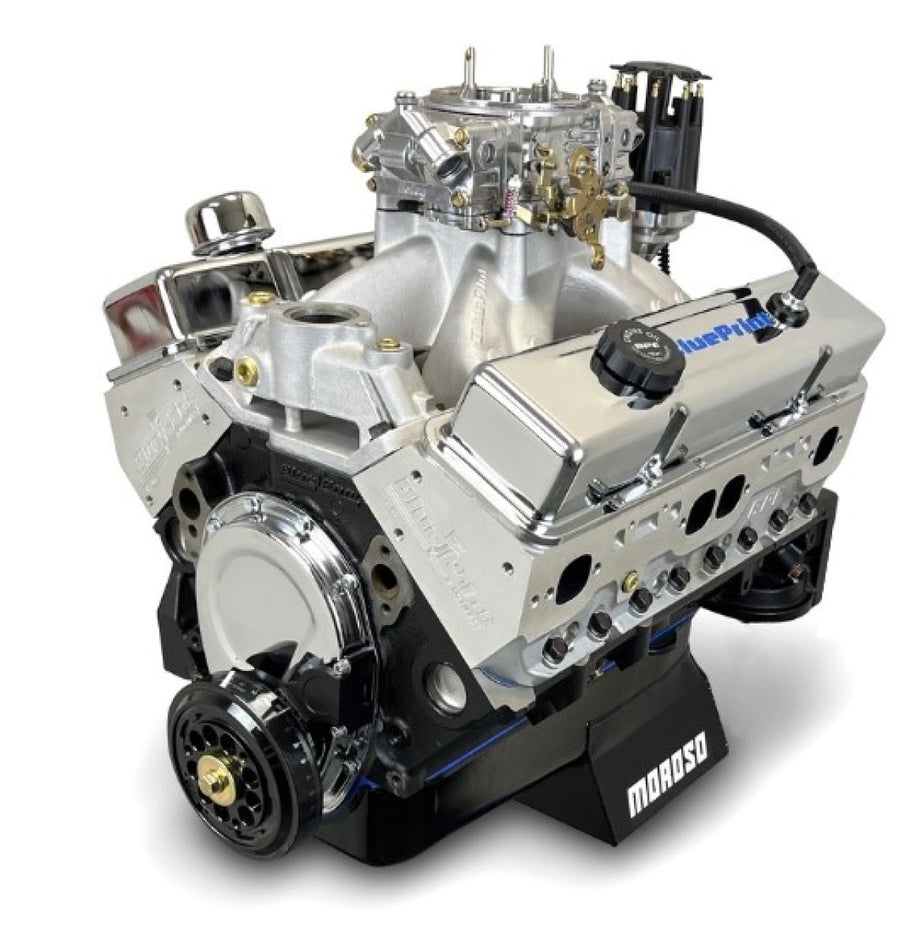

BluePrint Engines BPMS396CTC BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine
Part# BPMS396CTC
BluePrint Engines BPMS396CTC BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine
- Made in USA
- GM Compatible
$8,299.00
Free Shipping
Buy with confidence. Warranty terms are noted on your invoice,
delivery is included in the lower 48 states, and our specialists are a phone call away
through installation and beyond.
BluePrint Motorsports GM Small Block Compatible 396 c.i. Engine - 530 Horsepower - Base Dressed - Carbureted. Dyno Tested
Specifications
| Horsepower | 530 |
|---|---|
| Torque | 480 |
| Compression Ratio | 10.4:1 |
| Block Description | BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.000" Bore |
| Rear Main Seal Style | 1 Piece |
| Rotating Assembly | Forged Crank - 3.875 in. Stroke and 6 in. Rods |
| Cam | Hydraulic Roller - .638 Intake / .622 Exhaust Lift - 251 Intake / 259 Exhaust Duration -@ .050-114 LSA |
| Crankshaft Vendor | BluePrint Engines |
| Pistons | Forged 4032 High RPM Endurance |
| Engine Balance | Internally Balanced Front - Externally Balanced Rear |
| Cylinder Heads Included | Yes |
| Cylinder Heads | Aluminum Cylinder Heads |
| Cylinder Head Vendor | BluePrint Engines |
| Flexplate/Flywheel Included | No |
| Recommended Flexplate/Flywheel | BPP871006 - BPP399173 - BPP300116 |
| Harmonic Balancer Included | No |
| Recommended Harmonic Balancer | BPP350 |
| Timing Requirements | Initial Timing 10-16 - Total Timing 32-34 |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes-Rear Sump |
| Valve Covers Included | Yes |
| Intake Manifold Included | Yes |
| Intake Manifold Type | Single Plane, Satin Aluminum |
| Intake Manifold Vendor | BluePrint Engines |
| Fuel Delivery Type | 950cfm Double Pumper Carburetor w/ Manual Choke - Carbureted |
| Fuel Delivery Vendor | Holley |
| Carb/Fuel Injection Included | Yes |
| Recommended Octane Fuel | 100+ Octane |
| Distributor Included | Yes |
| Distributor Vendor | BluePrint Engines |
| Spark Plugs Included | No |
| Recommended Spark Plug Gap | .035 in. |
| Recommended Spark Plug | BPP7938 - NGK 7938 BKR5E |
| Spark Plug Wires Included | No |
| Firing Order | 1,8,4,3,6,5,7,2 |
| Water Pump Included | No |
| Air Cleaner Included | No |
| Recommended Stall Converter | 2000-2400 RPM |
| Pulley Kit Included | No |
| Notes | BluePrint Motorsports engines are built for maximum performance and are intended for extreme duty applications. Because of the high-stress nature of their use, these engines are sold without any warranty, expressed, or implied. This engine features a true 4-inch bore, which mathematically yields 389 CID with a 3.875-inch stroke. |
| Country of origin | USA |
| Shipping weight | 500 lb |
| Shipping size | 27 x 30 x 38 in |
Vehicles this fits
Listed by BluePrint Engines for 93 vehicle models. Call us to confirm before you order.
Show all 93 vehicles
- Chevrolet Bel Air 1965–1972, 1974–1975
- Chevrolet Biscayne 1965–1972
- Chevrolet Blazer 1973–1974
- Chevrolet Brookwood 1969–1972
- Chevrolet C10 1975, 1978–1980
- Chevrolet C10 Pickup 1968–1969, 1973–1974
- Chevrolet C10 Suburban 1968–1969, 1973–1975, 1978–1980
- Chevrolet C20 1975, 1978–1986
- Chevrolet C20 Pickup 1968–1969, 1973–1974
- Chevrolet C20 Suburban 1968–1969, 1973–1975, 1978–1986
- Chevrolet C30 1975–1976, 1978–1986
- Chevrolet C30 Pickup 1968–1969, 1973–1974
- Chevrolet C70 1979–1980
- Chevrolet Camaro 1967–1969
- Chevrolet Caprice 1966–1976
- Chevrolet Chevelle 1965–1973
- Chevrolet Chevy II 1968
- Chevrolet Corvette 1965, 1970–1974
- Chevrolet El Camino 1966–1975
- Chevrolet Estate 1970
- Chevrolet G10 Van 1973–1974
- Chevrolet G20 1976
- Chevrolet G20 Van 1973–1974
- Chevrolet G30 1975–1976
- Chevrolet G30 Van 1973–1974
- Chevrolet Impala 1965–1976
- Chevrolet K10 1976, 1980
- Chevrolet K10 Pickup 1968–1969, 1974
- Chevrolet K10 Suburban 1968–1969, 1974
- Chevrolet K20 1976, 1978
- Chevrolet K20 Pickup 1968–1969, 1973–1974
- Chevrolet K20 Suburban 1968–1969, 1973–1974, 1985
- Chevrolet K30 1980–1986
- Chevrolet K30 Pickup 1968–1969, 1973–1974
- Chevrolet K5 Blazer 1977–1978
- Chevrolet Kingswood 1969–1972
- Chevrolet Monte Carlo 1970–1975
- Chevrolet Nova 1969–1971
- Chevrolet P10 Van 1973
- Chevrolet P20 1976, 1979
- Chevrolet P20 Van 1970–1971, 1973
- Chevrolet P30 1975–1976, 1978–1987
- Chevrolet P30 Van 1970–1971, 1973–1974
- Chevrolet R20 1987
- Chevrolet R20 Suburban 1987
- Chevrolet R30 1987
- Chevrolet Townsman 1969–1972
- Chevrolet V20 Suburban 1987
- Chevrolet V30 1987
- GMC C15 1975–1978
- GMC C15 Suburban 1975–1978
- GMC C15/C1500 Pickup 1968–1969, 1973–1974
- GMC C15/C1500 Suburban 1968–1969, 1973–1974
- GMC C1500 1979–1980
- GMC C1500 Suburban 1979–1980
- GMC C25 1975–1978
- GMC C25 Suburban 1975–1978
- GMC C25/C2500 Pickup 1968–1969, 1973–1974
- GMC C25/C2500 Suburban 1968–1969, 1973–1974
- GMC C2500 1979–1982, 1986
- GMC C2500 Suburban 1979–1982, 1986
- GMC C35 1975–1978
- GMC C35/C3500 Pickup 1968–1969, 1973–1974
- GMC C3500 1979–1982, 1986
- GMC C7000 1979–1980
- GMC G25 1975–1976
- GMC G35 1976
- GMC G35/G3500 Van 1973–1974
- GMC Jimmy 1973–1974, 1976
- GMC K15 1976
- GMC K15/K1500 Pickup 1968–1969, 1973–1974
- GMC K15/K1500 Suburban 1968–1969, 1973–1974
- GMC K1500 1980
- GMC K25 1976–1978
- GMC K25 Suburban 1976–1977
- GMC K25/K2500 Pickup 1968–1969, 1973–1974
- GMC K25/K2500 Suburban 1968, 1973–1974
- GMC K35/K3500 Pickup 1968–1969, 1973–1974
- GMC K3500 1979–1982
- GMC P1500 1979
- GMC P25/P2500 Van 1970–1971
- GMC P35 1975–1978
- GMC P35/P3500 Van 1970–1971, 1973–1974
- GMC P3500 1979–1983, 1987
- GMC R2500 1987
- GMC R2500 Suburban 1987
- GMC R3500 1987
- GMC Sprint 1971–1975
- GMC V3500 1987
- Pontiac Acadian 1970–1971
- Pontiac Laurentian 1970
- Pontiac Parisienne 1970
- Pontiac Strato-Chief 1970
