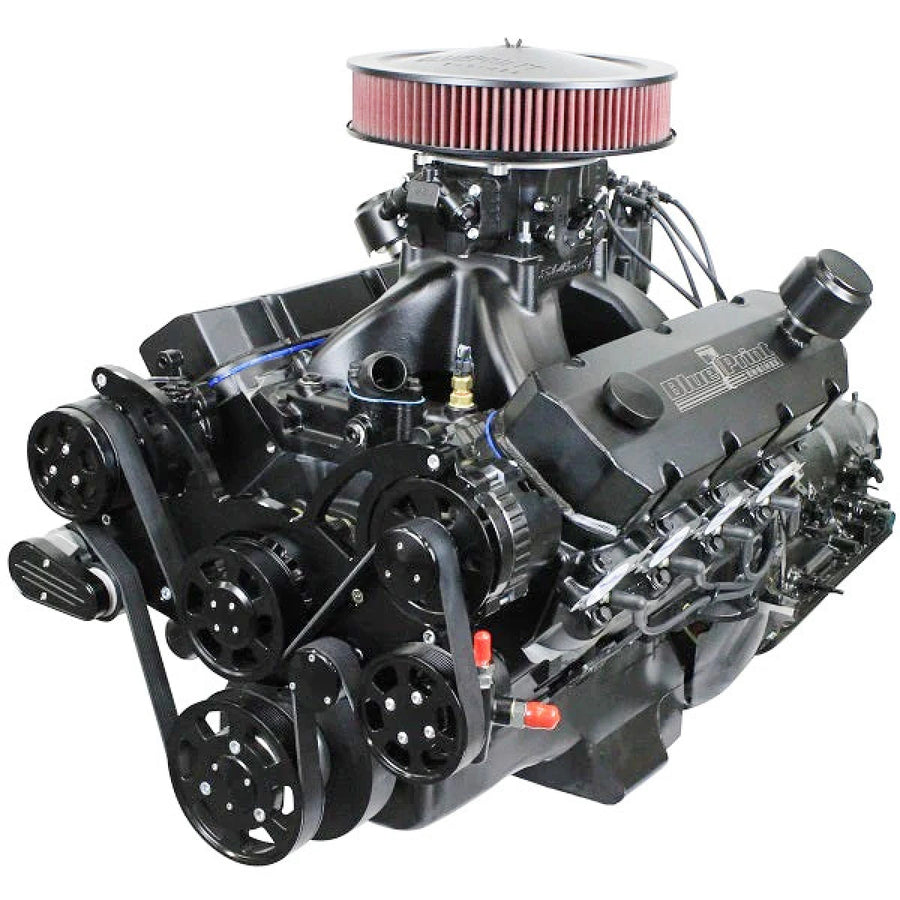

BluePrint Engines B632FKB4L8X Standard Edition GM Compatible Builder Series - EFI - Black Pulley Kit
Part# B632FKB4L8X
BluePrint Engines B632FKB4L8X Standard Edition GM Compatible Builder Series - EFI - Black Pulley Kit
- Made in USA
- GM Compatible
- Fuel Injected
$32,299.00
Free Shipping
Buy with confidence. Warranty terms are noted on your invoice,
delivery is included in the lower 48 states, and our specialists are a phone call away
through installation and beyond.
BluePrint Engines 632 c.i. GM Compatible Builder Series - Blackout Edition - Fuel Injected - 4L80E Automatic Transmission - Black Pulley Kit. Includes 30-Month / 50 000 Mile Warranty & Dyno Tested & Dyno Tested
Specifications
| Horsepower | 815 |
|---|---|
| Torque | 775 |
| Compression Ratio | 11.0:1 |
| Block Description | BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.600 " Bore |
| Rear Main Seal Style | 1 Piece |
| Rotating Assembly | Forged Crank - 4.750 in. Stroke and 6.635 in. Rods |
| Cam | Hydraulic Roller - .698 Intake / .698 Exhaust Lift - 272 Intake / 282 Exhaust Duration -@.050-110 LSA |
| Crankshaft Vendor | BluePrint Engines |
| Pistons | Forged |
| Engine Balance | Internally Balanced |
| Cylinder Heads Included | Yes |
| Cylinder Heads | Aluminum Cylinder Heads |
| Cylinder Head Vendor | BluePrint Engines |
| Flexplate/Flywheel Included | Yes |
| Recommended Flexplate/Flywheel | BPP871006 |
| Harmonic Balancer Included | Yes |
| Recommended Harmonic Balancer | BPP454I |
| Timing Requirements | Initial Timing 10-16 - Total Timing 32-34 |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes-Rear Sump |
| Valve Covers Included | Yes |
| Intake Manifold Included | Yes |
| Intake Manifold Type | Single Plane, Satin Aluminum |
| Intake Manifold Vendor | Edelbrock |
| Fuel Delivery Type | Sniper Stealth 4500 Power Adder -Black - Fuel Injected |
| Fuel Delivery Vendor | Holley |
| Carb/Fuel Injection Included | Yes |
| Recommended Octane Fuel | 91+ Octane |
| Distributor Included | Yes |
| Distributor Vendor | BluePrint Pro Billet |
| Spark Plugs Included | Yes |
| Recommended Spark Plug Gap | .035 in. |
| Recommended Spark Plug | BPP7938 NGK 7938 BKR5E |
| Spark Plug Wires Included | Yes |
| Firing Order | 1,8,4,3,6,5,7,2 |
| Water Pump Included | Yes |
| Recommended Stall Converter | 3800-4200+ RPM |
| Fuel Pump Included | Yes |
| Transmission Type | Automatic |
| Transmission Model | 4L80E |
| Pulley Kit Included | Yes - Black - Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140amp 1-wire Alternator, 7B10 Peanut Style Air Conditioning Compressor. |
| Country of origin | USA |
| Shipping weight | 1181 lb |
| Shipping size | 73 x 32 x 46 in |
