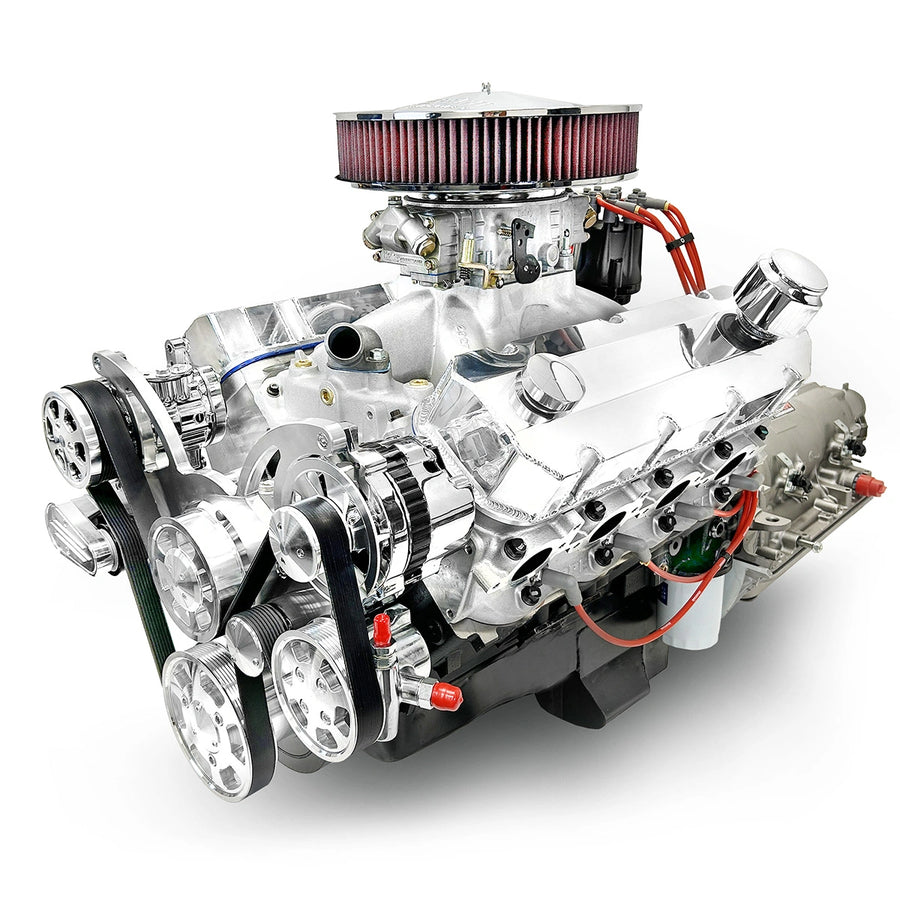

BluePrint Engines B598K4L8 Standard Edition GM Compatible Builder Series - Carb - Polished Pulley Kit
Part# B598K4L8
BluePrint Engines B598K4L8 Standard Edition GM Compatible Builder Series - Carb - Polished Pulley Kit
- Made in USA
- GM Compatible
- Carbureted
$26,699.00
Free Shipping
Buy with confidence. Warranty terms are noted on your invoice,
delivery is included in the lower 48 states, and our specialists are a phone call away
through installation and beyond.
BluePrint Engines 598 c.i. GM Compatible Builder Series - Standard Edition - Carburetor - 4L80E Automatic Transmission - Polished Pulley Kit. Includes 30-Months / 50 000 Mile Warranty & Dyno Tested
Specifications
| Horsepower | 741 |
|---|---|
| Torque | 703 |
| Compression Ratio | 10.5:1 |
| Block Description | BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.600" Bore |
| Rear Main Seal Style | 1 Piece |
| Rotating Assembly | Forged Crank - 4.500 in. Stroke and 6.480 in. Rods |
| Cam | Hydraulic Roller - .647 Intake / .647 Exhaust Lift - 258 Intake / 266 Exhaust Duration -@.050-112 LSA |
| Crankshaft Vendor | BluePrint Engines |
| Pistons | Forged |
| Engine Balance | Internally Balanced |
| Cylinder Heads Included | Yes |
| Cylinder Heads | Aluminum Cylinder Heads |
| Cylinder Head Vendor | BluePrint Engines |
| Flexplate/Flywheel Included | Yes |
| Recommended Flexplate/Flywheel | BPP168T2P |
| Harmonic Balancer Included | Yes |
| Recommended Harmonic Balancer | BPP454I |
| Timing Requirements | Initial Timing 10-16 - Total Timing 32-34 |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes-Rear Sump |
| Valve Covers Included | Yes |
| Intake Manifold Included | Yes |
| Intake Manifold Type | Dual Plane, Satin Aluminum |
| Intake Manifold Vendor | BluePrint Engines |
| Fuel Delivery Type | 1250cfm Gen III Dominator Carburetor w/ Manual Choke - Carbureted |
| Fuel Delivery Vendor | Holley |
| Carb/Fuel Injection Included | Yes |
| Recommended Octane Fuel | 91+ Octane |
| Distributor Included | Yes |
| Distributor Vendor | BluePrint Pro Billet |
| Spark Plugs Included | Yes |
| Recommended Spark Plug Gap | .035 in. |
| Recommended Spark Plug | BPP7938 NGK 7938 BKR5E |
| Spark Plug Wires Included | Yes |
| Firing Order | 1,8,4,3,6,5,7,2 |
| Water Pump Included | Yes |
| Air Cleaner Included | Yes |
| Recommended Stall Converter | 2500-2800 RPM |
| Fuel Pump Included | Yes |
| Transmission Type | Automatic |
| Transmission Model | 4L80E |
| Pulley Kit Included | Yes - Polished - Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140amp 1-wire Alternator, 7B10 Peanut Style Air Conditioning Compressor. |
| Country of origin | USA |
| Shipping weight | 1135 lb |
| Shipping size | 73 x 32 x 46 in |
