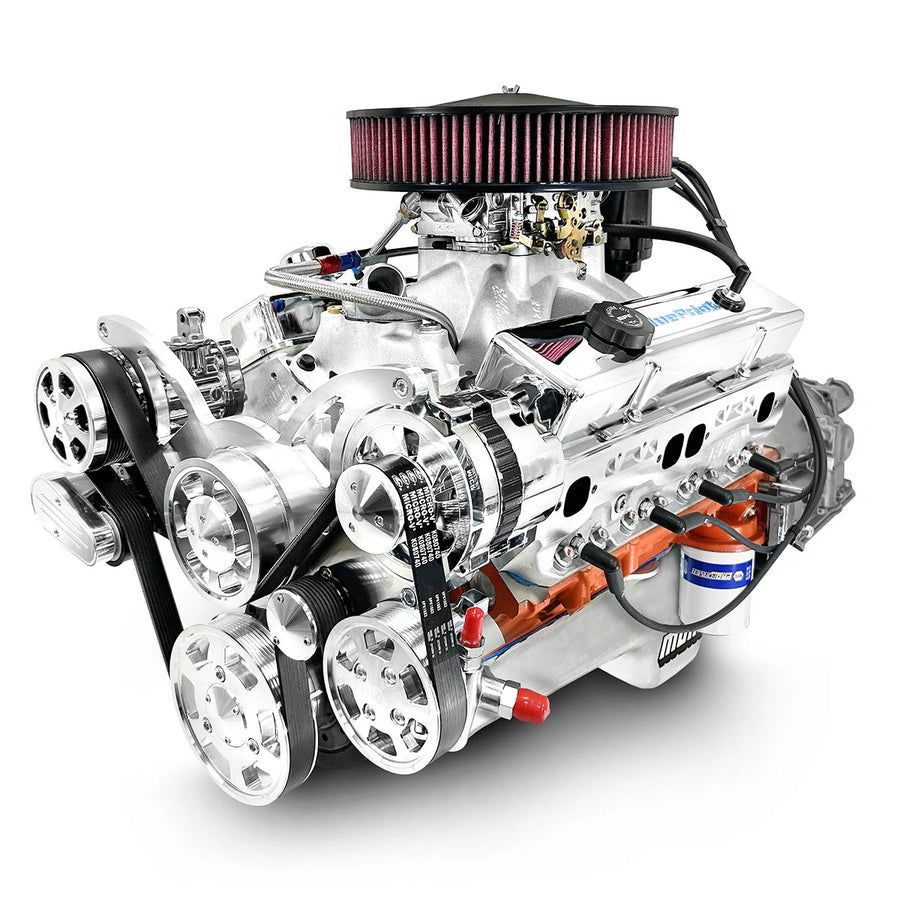

BluePrint Engines B454FK700 Standard Edition GM Compatible Builder Series - EFI - Polished Pulley Kit
Part# B454FK700
BluePrint Engines B454FK700 Standard Edition GM Compatible Builder Series - EFI - Polished Pulley Kit
- Made in USA
- GM Compatible
- Fuel Injected
$22,099.00
Free Shipping
Buy with confidence. Warranty terms are noted on your invoice,
delivery is included in the lower 48 states, and our specialists are a phone call away
through installation and beyond.
BluePrint Engines 454 c.i. GM Compatible Builder Series - Standard Edition - Fuel Injected - 700R4 Automatic Transmission - Polished Pulley Kit. Includes 30-Month / 50 000 Mile Warranty & Dyno Tested
Specifications
| Horsepower | 563 |
|---|---|
| Torque | 545 |
| Compression Ratio | 10.0:1 |
| Block Description | BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.250" Bore |
| Rear Main Seal Style | 1 Piece |
| Rotating Assembly | Forged Crank - 4.000 in. Stroke and 6.000 in. Rods |
| Cam | Hydraulic Roller - .638 Intake / .622 Exhaust Lift - 251 Intake / 259 Exhaust Duration -@.050-114 LSA |
| Crankshaft Vendor | BluePrint Engines |
| Pistons | Forged |
| Engine Balance | Internally Balanced |
| Cylinder Heads Included | Yes |
| Cylinder Heads | Aluminum Cylinder Heads |
| Cylinder Head Vendor | BluePrint Engines |
| Flexplate/Flywheel Included | Yes |
| Recommended Flexplate/Flywheel | BPP399774 |
| Harmonic Balancer Included | Yes |
| Recommended Harmonic Balancer | BPP350 |
| Timing Requirements | Initial Timing 10-16 - Total Timing 32-34 |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes-Rear Sump |
| Valve Covers Included | Yes |
| Intake Manifold Included | Yes |
| Intake Manifold Type | Single Plane, Satin Aluminum |
| Intake Manifold Vendor | BluePrint Engines |
| Fuel Delivery Type | Sniper II EFI - Fuel Injected |
| Fuel Delivery Vendor | Holley |
| Carb/Fuel Injection Included | Yes |
| Recommended Octane Fuel | 91+ Octane |
| Distributor Included | Yes |
| Distributor Vendor | BluePrint Pro Billet |
| Spark Plugs Included | Yes |
| Recommended Spark Plug Gap | .035 in. |
| Recommended Spark Plug | BPP7938 NGK 7938 BKR5E |
| Spark Plug Wires Included | Yes |
| Firing Order | 1,8,4,3,6,5,7,2 |
| Water Pump Included | Yes |
| Air Cleaner Included | Yes |
| Recommended Stall Converter | 2200+ RPM |
| Fuel Pump Included | Yes |
| Transmission Type | Automatic |
| Transmission Model | 700R4 |
| Pulley Kit Included | Yes - Polished - Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140amp 1-wire Alternator, 7B10 Peanut Style Air Conditioning Compressor. |
| Country of origin | USA |
| Shipping weight | 955 lb |
| Shipping size | 73 x 32 x 46 in |
Vehicles this fits
Listed by BluePrint Engines for 99 vehicle models. Call us to confirm before you order.
Show all 99 vehicles
- Chevrolet Bel Air 1965–1975
- Chevrolet Biscayne 1965–1972
- Chevrolet Blazer 1973–1974
- Chevrolet Brookwood 1969–1972
- Chevrolet C10 1975–1980
- Chevrolet C10 Pickup 1968–1969, 1973–1974
- Chevrolet C10 Suburban 1968–1969, 1973–1980
- Chevrolet C20 1975–1986
- Chevrolet C20 Pickup 1968–1969, 1973–1974
- Chevrolet C20 Suburban 1968–1969, 1973–1986
- Chevrolet C30 1975–1986
- Chevrolet C30 Pickup 1968–1969, 1973–1974
- Chevrolet C70 1979–1980
- Chevrolet Camaro 1967–1969
- Chevrolet Caprice 1966–1976
- Chevrolet Chevelle 1965–1973
- Chevrolet Chevy II 1968
- Chevrolet Corvette 1965, 1970–1974
- Chevrolet El Camino 1966–1975
- Chevrolet Estate 1969–1970
- Chevrolet G10 Van 1973–1974
- Chevrolet G20 1976
- Chevrolet G20 Van 1973–1974
- Chevrolet G30 1975–1976
- Chevrolet G30 Van 1973–1974
- Chevrolet Impala 1965–1976
- Chevrolet K10 1976, 1980
- Chevrolet K10 Pickup 1968–1969, 1974
- Chevrolet K10 Suburban 1968–1969, 1974
- Chevrolet K20 1976–1978
- Chevrolet K20 Pickup 1968–1969, 1973–1974
- Chevrolet K20 Suburban 1968–1969, 1973–1974, 1985
- Chevrolet K30 1977, 1980–1986
- Chevrolet K30 Pickup 1968–1969, 1973–1974
- Chevrolet K5 Blazer 1976–1978
- Chevrolet Kingswood 1969–1972
- Chevrolet Monte Carlo 1970–1975
- Chevrolet Nova 1969–1971
- Chevrolet P10 Van 1973
- Chevrolet P20 1976, 1979
- Chevrolet P20 Van 1970–1971, 1973
- Chevrolet P30 1975–1987
- Chevrolet P30 Van 1970–1971, 1973–1974
- Chevrolet R20 1987
- Chevrolet R20 Suburban 1987
- Chevrolet R30 1987
- Chevrolet Townsman 1969–1972
- Chevrolet V20 Suburban 1987
- Chevrolet V30 1987
- Chevrolet W5500 Tiltmaster 1988–1994
- Chevrolet W6500 Tiltmaster 1988–1989, 1992–1994
- Chevrolet W7500 Tiltmaster 1989–1994
- GMC C15 1975–1978
- GMC C15 Suburban 1975–1978
- GMC C15/C1500 Pickup 1968–1969, 1973–1974
- GMC C15/C1500 Suburban 1968–1969, 1973–1974
- GMC C1500 1979–1980
- GMC C1500 Suburban 1979–1980
- GMC C25 1975–1978
- GMC C25 Suburban 1975–1978
- GMC C25/C2500 Pickup 1968–1969, 1973–1974
- GMC C25/C2500 Suburban 1968–1969, 1974
- GMC C2500 1979–1986
- GMC C2500 Suburban 1979–1986
- GMC C35 1975–1978
- GMC C35/C3500 Pickup 1968–1969, 1973–1974
- GMC C3500 1979–1986
- GMC C7000 1979–1980
- GMC G25 1975–1976
- GMC G35 1976
- GMC G35/G3500 Van 1974
- GMC Jimmy 1973–1974, 1976
- GMC K15 1976
- GMC K15/K1500 Pickup 1968–1969, 1973–1974
- GMC K15/K1500 Suburban 1968–1969, 1973–1974
- GMC K1500 1980
- GMC K25 1976–1978
- GMC K25 Suburban 1976–1977
- GMC K25/K2500 Pickup 1968–1969, 1973–1974
- GMC K25/K2500 Suburban 1968–1969, 1973–1974
- GMC K35/K3500 Pickup 1968–1969, 1973–1974
- GMC K3500 1979–1986
- GMC P1500 1979
- GMC P25/P2500 Van 1970–1971
- GMC P35 1975–1978
- GMC P35/P3500 Van 1970–1971, 1973–1974
- GMC P3500 1979–1987
- GMC R2500 1987
- GMC R2500 Suburban 1987
- GMC R3500 1987
- GMC Sprint 1971–1975
- GMC V3500 1987
- GMC W5500 Forward 1988–1994
- GMC W6500 Forward 1988–1989, 1992–1994
- GMC W7500 Forward 1989–1994
- Pontiac Acadian 1970–1971
- Pontiac Laurentian 1970
- Pontiac Parisienne 1970
- Pontiac Strato-Chief 1970
