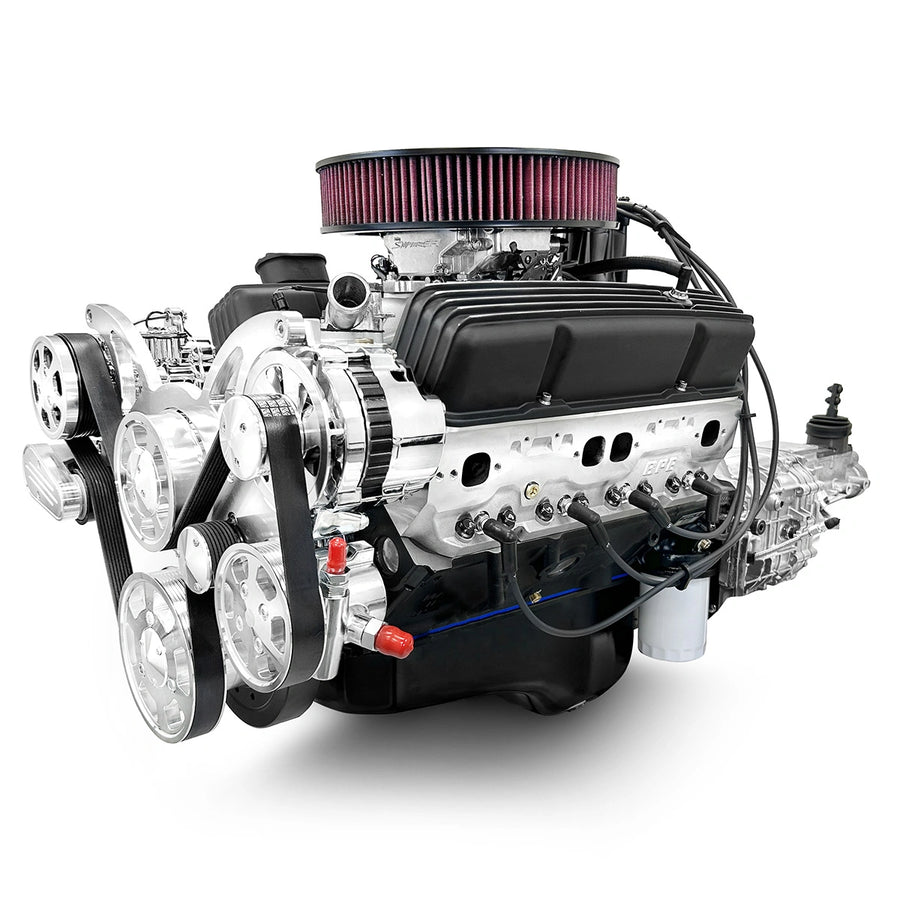

BluePrint Engines B383FKTKX Standard Edition GM Compatible Builder Series - EFI - Polished Pulley Kit
Part# B383FKTKX
BluePrint Engines B383FKTKX Standard Edition GM Compatible Builder Series - EFI - Polished Pulley Kit
- Made in USA
- GM Compatible
- Fuel Injected
$18,899.00
Free Shipping
Buy with confidence. Warranty terms are noted on your invoice,
delivery is included in the lower 48 states, and our specialists are a phone call away
through installation and beyond.
BluePrint Engines 383 c.i. GM Compatible Standard Edition Builder Series - Fuel Injected - TKX Manual Transmission - Polished Pulley Kit. Includes 30-Month / 50 000 Mile Warranty & Dyno Tested
Specifications
| Horsepower | 436 |
|---|---|
| Torque | 443 |
| Compression Ratio | 10.0:1 |
| Block Description | BluePrint Engines Cast Iron Block - 4 Bolt Main - 4.000" Bore |
| Rear Main Seal Style | 1 Piece |
| Rotating Assembly | Cast Crank - 3.750 in. Stroke and 5.700 in. Rods |
| Cam | Hydraulic Roller - .544 Intake / .555 Exhaust Lift - 230 Intake / 236 Exhaust Duration -@.050-110 LSA |
| Crankshaft Vendor | BluePrint Engines |
| Pistons | Hypereutectic |
| Engine Balance | Externally Balanced |
| Cylinder Heads Included | Yes |
| Cylinder Heads | Aluminum Cylinder Heads |
| Cylinder Head Vendor | BluePrint Engines |
| Flexplate/Flywheel Included | Yes |
| Recommended Flexplate/Flywheel | BPP460265 |
| Harmonic Balancer Included | Yes |
| Recommended Harmonic Balancer | BPP400L |
| Timing Requirements | Initial Timing 10-16 - Total Timing 32-34 |
| Timing Cover Included | Yes |
| Oil Pan Included | Yes-Rear Sump |
| Valve Covers Included | Yes |
| Intake Manifold Included | Yes |
| Intake Manifold Type | Dual Plane, Satin Aluminum |
| Intake Manifold Vendor | BluePrint Engines |
| Fuel Delivery Type | Sniper II EFI - Fuel Injected |
| Fuel Delivery Vendor | Holley |
| Carb/Fuel Injection Included | Yes |
| Recommended Octane Fuel | 91+ Octane |
| Distributor Included | Yes |
| Distributor Vendor | BluePrint Pro Billet |
| Spark Plugs Included | Yes |
| Recommended Spark Plug Gap | .035 in. |
| Recommended Spark Plug | BPP7938 NGK 7938 BKR5E |
| Spark Plug Wires Included | Yes |
| Firing Order | 1,8,4,3,6,5,7,2 |
| Water Pump Included | Yes |
| Air Cleaner Included | Yes |
| Recommended Stall Converter | 2400+ RPM |
| Fuel Pump Included | Yes |
| Transmission Type | Manual |
| Transmission Model | TKX |
| Pulley Kit Included | Yes - Polished - Reverse Rotation Short Water Pump, Type II Power Steering Pump, Remote Power Steering Pump Reservoir, 140amp 1-wire Alternator, 7B10 Peanut Style Air Conditioning Compressor. |
| Country of origin | USA |
| Shipping weight | 940 lb |
| Shipping size | 73 x 32 x 46 in |
Vehicles this fits
Listed by BluePrint Engines for 185 vehicle models. Call us to confirm before you order.
Show all 185 vehicles
- Buick Apollo 1973–1975
- Buick Centurion 1973
- Buick Century 1973–1979, 1981
- Buick Commercial Chassis 1992–1996
- Buick Electra 1976–1985
- Buick Estate Wagon 1970, 1973, 1977–1983
- Buick GS 1970–1972
- Buick GS 350 1968–1969
- Buick GS 400 1968–1969
- Buick Gran Sport 1967
- Buick LeSabre 1968–1985
- Buick Regal 1973–1977, 1981–1983, 1985
- Buick Riviera 1977–1985
- Buick Roadmaster 1992–1996
- Buick Skylark 1967–1972, 1975–1979
- Buick Special 1968–1969
- Buick Sportwagon 1968–1972
- Chevrolet B60 1980–1990
- Chevrolet Bel Air 1969–1975
- Chevrolet Biscayne 1969–1972
- Chevrolet Blazer 1969–1974, 1987–1994
- Chevrolet Brookwood 1969–1972
- Chevrolet C10 1975–1986
- Chevrolet C10 Pickup 1969–1974
- Chevrolet C10 Suburban 1969–1986
- Chevrolet C15 1982–1985
- Chevrolet C1500 1988–1999
- Chevrolet C1500 Suburban 1992–1999
- Chevrolet C20 1975–1987
- Chevrolet C20 Pickup 1969–1974
- Chevrolet C20 Suburban 1969–1986
- Chevrolet C2500 1988–2000
- Chevrolet C2500 Suburban 1992–1999
- Chevrolet C30 1975–1986
- Chevrolet C30 Pickup 1969–1974
- Chevrolet C35 1983–2000
- Chevrolet C3500 1988–2000
- Chevrolet C3500HD 1991–1995, 2000
- Chevrolet C50 1969–1990
- Chevrolet C60 1969–1990
- Chevrolet C70 1979, 1986
- Chevrolet Camaro 1967–1981, 1987–2002
- Chevrolet Caprice 1969–1996
- Chevrolet Cargo Van 1997–2000
- Chevrolet Chevelle 1969–1973
- Chevrolet Chevy II 1968
- Chevrolet Commercial Chassis 1991–1994
- Chevrolet Corvette 1969–1982, 1984–2004
- Chevrolet El Camino 1968–1979, 1983–1984
- Chevrolet Estate 1969–1970
- Chevrolet Express 1500 1996–2002
- Chevrolet Express 2500 1996–2002
- Chevrolet Express 3500 1996–2002
- Chevrolet G10 1975–1993
- Chevrolet G10 Van 1970–1974
- Chevrolet G20 1975–1995
- Chevrolet G20 Van 1970–1974
- Chevrolet G30 1975–1996
- Chevrolet G30 Van 1970–1974
- Chevrolet GP3500 1993–1996
- Chevrolet Impala 1969–1985, 1994–1996
- Chevrolet K10 1975–1986
- Chevrolet K10 Pickup 1969–1974
- Chevrolet K10 Suburban 1969–1986
- Chevrolet K1500 1988–1999
- Chevrolet K1500 Suburban 1992–1999
- Chevrolet K20 1975–1986
- Chevrolet K20 Pickup 1969–1974
- Chevrolet K20 Suburban 1969–1986
- Chevrolet K2500 1988–2000
- Chevrolet K2500 Suburban 1992–1999
- Chevrolet K30 1977–1986
- Chevrolet K30 Pickup 1969–1974
- Chevrolet K3500 1988–2000
- Chevrolet K5 Blazer 1975–1986
- Chevrolet Kingswood 1969–1972
- Chevrolet L30 1999–2000
- Chevrolet Malibu 1975, 1978–1983
- Chevrolet Monte Carlo 1970–1977, 1981–1984
- Chevrolet Nova 1969–1979
- Chevrolet P10 1975, 1977–1978
- Chevrolet P10 Van 1973
- Chevrolet P20 1975–1989
- Chevrolet P20 Van 1970–1974
- Chevrolet P30 1975–2000, 2002–2005
- Chevrolet P30 Van 1970–1974
- Chevrolet P60 1983–1990
- Chevrolet R10 1987
- Chevrolet R10 Suburban 1987–1988
- Chevrolet R1500 Suburban 1989–1991
- Chevrolet R20 1987–1988
- Chevrolet R20 Suburban 1987–1988
- Chevrolet R2500 1989
- Chevrolet R2500 Suburban 1989–1991
- Chevrolet R30 1987–1988
- Chevrolet R3500 1989–1991
- Chevrolet Silverado 1995–1999
- Chevrolet Silverado 2500 2000–2002
- Chevrolet Silverado 3500 2001–2007
- Chevrolet Sonora 2000–2002
- Chevrolet Suburban 1987–1994
- Chevrolet Suburban 1500 1995–2002
- Chevrolet Tahoe 1995–2000
- Chevrolet Townsman 1969–1972
- Chevrolet V10 1987
- Chevrolet V10 Suburban 1987–1988
- Chevrolet V1500 Suburban 1989–1991
- Chevrolet V20 1987
- Chevrolet V20 Suburban 1987–1988
- Chevrolet V2500 Suburban 1989–1991
- Chevrolet V30 1987–1988
- Chevrolet V3500 1989–1991
- Chevrolet W3500 Tiltmaster 1995–2003
- Chevrolet W4500 Tiltmaster 1993–2003
- GMC B6000 1980–1991
- GMC C15 1975–1978
- GMC C15 Suburban 1975–1978
- GMC C15/C1500 Pickup 1969–1974
- GMC C15/C1500 Suburban 1969–1974
- GMC C1500 1979–1986, 1988–1999
- GMC C1500 Suburban 1979–1986, 1992–1999
- GMC C25 1975–1978
- GMC C25 Suburban 1975–1978
- GMC C25/C2500 Pickup 1969–1974
- GMC C25/C2500 Suburban 1969–1974
- GMC C2500 1979–1986, 1988–2000
- GMC C2500 Suburban 1979–1986, 1992–1999
- GMC C35 1975–1978
- GMC C35/C3500 Pickup 1969–1974
- GMC C3500 1979–1986, 1988–2000
- GMC C3500HD 1991–1995, 1999–2000
- GMC C5000 1979–1990
- GMC C6000 1979–1990
- GMC C7000 1979
- GMC Caballero 1978–1979, 1983–1984
- GMC G15 1975–1978
- GMC G15/G1500 Van 1971–1974
- GMC G1500 1979–1993
- GMC G25 1975–1978
- GMC G25/G2500 Van 1970–1974
- GMC G2500 1979–1995
- GMC G35 1975–1978
- GMC G35/G3500 Van 1970–1974
- GMC G3500 1979–1996
- GMC Jimmy 1970–1991
- GMC K15 1975–1978
- GMC K15 Suburban 1975–1978
- GMC K15/K1500 Pickup 1969–1974
- GMC K15/K1500 Suburban 1969–1974
- GMC K1500 1979–1986, 1988–1999
- GMC K1500 Suburban 1979–1986, 1992–1999
- GMC K25 1975–1978
- GMC K25 Suburban 1975–1978
- GMC K25/K2500 Pickup 1969–1974
- GMC K25/K2500 Suburban 1969–1974
- GMC K2500 1979–1986, 1988–2000
- GMC K2500 Suburban 1979–1986, 1992–1999
- GMC K35 1977–1978
- GMC K35/K3500 Pickup 1969–1974
- GMC K3500 1979–1986, 1988–2000
- GMC P15/P1500 Van 1971–1972
- GMC P25 1975–1978
- GMC P25/P2500 Van 1970–1974
- GMC P2500 1979–1989
- GMC P35 1975–1978
- GMC P35/P3500 Van 1970–1974
- GMC P3500 1979–1999
- GMC P6000 1984–1990
- GMC R1500 1987
- GMC R1500 Suburban 1987–1991
- GMC R2500 1987–1989
- GMC R2500 Suburban 1987–1991
- GMC R3500 1987–1991
- GMC Savana 1500 1996–2002
- GMC Savana 2500 1996–2002
- GMC Savana 3500 1996–2002
- GMC Sprint 1971–1977
- GMC V1500 1987
- GMC V1500 Suburban 1987–1991
- GMC V2500 1987
- GMC V2500 Suburban 1987–1991
- GMC V3500 1987–1991
- GMC W3500 Forward 1995–2003
- GMC W4500 Forward 1998–2003
- GMC Yukon 1992–2000
